Best Oscillating Spindle Sanders: Inside Curves Made Easy

Cut a curve on a bandsaw or jigsaw and you are left with a rough, slightly wandering edge. Sanding it smooth is genuinely difficult — a flat sander bridges the curve and flattens the high points, and hand sanding an inside curve accurately takes real patience.

The oscillating spindle sander exists purely to solve that. A cylindrical drum sits vertically through a table, you press the curved edge against it, and it follows the arc exactly. What took twenty minutes of careful hand work takes about thirty seconds.

This guide covers what the oscillation actually does, which spindle sizes you need, benchtop versus portable, and the technique that keeps edges square instead of undercut.

What Oscillation Actually Does

A plain spinning drum sander — the kind you can fit in a drill press — has one serious flaw. Every abrasive grain travels the same circular path, so it wears a band around the middle of the sleeve while the top and bottom stay fresh. That worn band stops cutting, starts rubbing, and rubbing means heat. Heat means burn marks on your workpiece, especially on maple, cherry and other pale hardwoods that show every scorch.

An oscillating spindle sander adds a second motion: the drum travels up and down as it spins, typically around half an inch of stroke, dozens of times per minute.

Three things improve immediately:

• Even sleeve wear. The abrasive is used across its full height instead of one band, so sleeves last several times longer.
• No burn marks. Fresh abrasive constantly moves into contact, so it keeps cutting rather than rubbing.
• Better finish. The vertical movement breaks up the horizontal scratch pattern, leaving a surface that needs less cleanup.

That is why the oscillating version is worth the extra over a simple drum kit. The difference is not subtle — it is the difference between clean curves and scorched ones.

🪵 The simple test: if a curve comes off your sander with a dark band or a shiny burnished patch, the abrasive is rubbing, not cutting. Oscillation is the mechanical fix for exactly that.

Benchtop vs Portable

For most woodworkers the benchtop is the right choice. The table is what makes the tool accurate — it holds the workpiece at a consistent 90 degrees so the sanded edge stays square rather than undercut. Freehand, keeping a piece perfectly vertical against a spinning drum is genuinely hard.

The portable version earns its place when the workpiece is too big or too fixed to bring to a machine — a curved handrail, a fitted worktop cutout, an arched opening. Some portable models can also be clamped upside down to act as a small benchtop unit, which is a genuinely useful compromise.

Specs That Matter

• Range of spindle sizes. The most important spec. A machine that includes 1/2″, 3/4″, 1″, 1-1/2″ and 2″ spindles covers almost any curve you will cut. A machine with two sizes will frustrate you the first time a tight radius appears.
• Tilting table. Lets you sand bevelled edges and angled curves. If you make anything with a chamfered or splayed edge, this matters a lot.
• Oscillations per minute and stroke length. More oscillation spread means longer sleeve life and less burning. A stroke around 5/8″ is typical and plenty.
• Onboard storage. Sounds trivial; is not. These machines come with a lot of drums, sleeves, washers and table inserts, and the ones that store on the machine are the ones you still have in two years.
• Dust port. Sanding inside a curve traps dust exactly where you cannot see. A port under the table connected to a vacuum makes a real difference.
• Table size and flatness. A larger, genuinely flat cast table supports work better than a small pressed one.

Motor power rarely limits these machines. You are removing small amounts from an edge, not hogging material, so a 3.5 to 5 amp motor is entirely adequate.

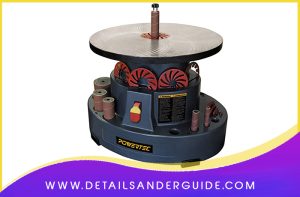

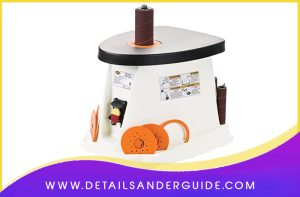

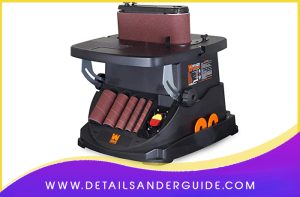

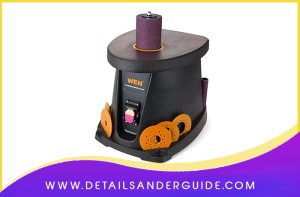

Our Picks

Comparison

Note: a spindle sander handles inside curves; a belt/disc sander handles outside curves and flats. They complement each other rather than compete.

💬 Affiliate disclosure: as an Amazon Associate, DetailSanderGuide may earn from qualifying purchases. This costs you nothing extra and never changes which tools we recommend.

Spindle Sizes and Sleeves

The rule is simple: the drum must be smaller than the curve you are sanding. Try to sand a tight inside curve with a 2″ drum and it will only touch the ends, leaving the middle untouched and the shape distorted.

Sleeve grits: 80 grit for shaping and removing saw marks, 120 for general smoothing, 150–220 for finishing. Because the sleeve is a consumable that wears from the inside of the curve outward, buy multi-packs rather than singles.

Change sleeves before they stop cutting. A worn sleeve burnishes rather than cuts, which puts you right back to the burn marks that oscillation is designed to prevent. Sleeves are inexpensive; a scorched cherry table apron is not.

How to Use One Properly

1. Fit the right drum and a fresh sleeve. Match the drum to the tightest radius on the piece, and fit the correct table insert so there is minimal gap around the drum.
2. Connect dust extraction. The port is usually under the table. Curved edges trap dust where you cannot see it.
3. Check the table is square to the spindle with a small engineer’s square. Do not trust the printed scale — this is what keeps your edges at 90 degrees.
4. Feed against the rotation. The drum spins one way; move the workpiece against it so the tool cuts rather than grabs. If the piece wants to run away from you, you are feeding the wrong way.
5. Keep the work moving. Pausing in one spot creates a flat or a hollow in what should be a smooth arc — the single most common error.
6. Light pressure. Let the abrasive cut. Pressing bogs the motor, burns the wood and rounds the edge.
7. Keep the piece flat on the table throughout, so the edge stays square rather than undercut.

The habit that separates good results from bad is simply never stopping while in contact. Move steadily along the curve, come off the drum, then go back if you need another pass.

Common Mistakes and Fixes

1. Pausing in one spot

Result: a flat spot or hollow in a curve that should be smooth.
Fix: keep the workpiece moving continuously along the edge.

2. Using a drum bigger than the curve

Result: the middle of the curve never gets touched and the shape changes.
Fix: match the drum to the tightest radius.

3. Lifting the workpiece off the table

Result: an undercut, out-of-square edge that will not sit right in a joint.
Fix: keep it flat and check the table is square to the spindle.

4. Feeding with the rotation

Result: the drum grabs the workpiece and pulls it out of your hands.
Fix: always feed against the direction of rotation.

5. Pressing hard to work faster

Result: burn marks, a bogged motor, and a rounded edge.
Fix: lighter pressure, coarser sleeve.

6. Running worn sleeves

Result: burnishing and scorching, the exact problems oscillation prevents.
Fix: change sleeves as soon as cutting slows.

7. No dust extraction

Result: dust packs into the curve and around the drum, and you breathe the rest.
Fix: connect a vacuum to the table port. See the dust safety checklist.

Pro Tips

• Sand to a marked line, not by eye. Draw the finished curve clearly and sand until the line just disappears. Freehand judgement on a curve is far less reliable than it feels.
• Use a template and a flush trim bit for repeats. If you need six identical curves, rout them from a template and use the spindle sander only to clean up. Sanding six curves freehand will produce six slightly different shapes.
• Keep a fine sleeve on a second drum. Swapping between coarse and fine on the same drum is the reason people skip the finishing pass.
• Make table inserts for odd drums. A snug insert stops small pieces dropping into the gap around the spindle — a genuine hazard with narrow parts.
• Rotate the workpiece, not just slide it. On a tight curve, pivoting the piece keeps contact even across the radius.
• Wax the table. A little paste wax lets work slide smoothly, which improves control and reduces the urge to press.
• Sand outside curves on a belt or disc sander. Do not fight an outside curve on a spindle sander — the other tool does it far better.

Real-World Examples

The chair backs that all came out different

Someone cuts four curved chair backs on a bandsaw and sands each to the line by eye. They look fine individually, but lined up the curves are visibly inconsistent. The fix is a template: rout all four to identical shape, then use the spindle sander purely to remove the router marks. Machines make repeats consistent; hands do not.

The burnt maple cutout

Maple scorches more readily than almost any common hardwood, and a worn sleeve on a tight inside curve is the perfect recipe. The dark ring appears within seconds and has to be sanded out, which changes the shape. A fresh sleeve and continuous movement prevents it entirely.

The worktop cutout that needed the portable

A fitted kitchen worktop with a curved cutout cannot be lifted onto a benchtop machine. This is exactly the case the handheld version exists for — and where people who own only a benchtop model end up hand sanding for an hour.

Setting Up a New Machine

Spindle sanders arrive as a machine plus a box of drums, sleeves, washers and table inserts. Ten minutes of setup makes the difference between a tool you use and one that stays in its box.

1. Sort the drums and inserts by size and keep them in the onboard storage. These parts are small, similar-looking and very easy to lose — and a missing table insert makes a drum size unusable.
2. Check the table for square against each spindle with a small engineer’s square, and note the setting. Printed scales on budget machines are frequently a degree or so out.
3. Fit the largest drum first and run the machine briefly. Listen for knocking or wobble, which indicates the drum is not seated properly on the shaft.
4. Set up dust extraction before the first cut, not after you have made a mess. A shop vacuum on the table port is far better than the collection bag on most models.
5. Bolt or clamp the machine down. These oscillate by design, and an unsecured benchtop unit walks across the bench.
6. Buy a sleeve multi-pack immediately. The two or three sleeves in the box will not last a single project, and running a worn sleeve is what causes burning.

One thing worth knowing: the rubber drums expand when you tighten the top nut, which is what grips the sleeve. If sleeves keep spinning loose on the drum, the nut is not tight enough — not a fault with the sleeve.

Frequently Asked Questions

What is an oscillating spindle sander used for?

Smoothing inside curves — the concave edges left by a bandsaw, jigsaw or scroll saw. That includes cabinet arches, chair backs, template work, toy parts, handle cutouts and any shaped edge. The drum spins and moves up and down at the same time, which spreads wear across the sleeve and prevents the burn marks a fixed drum leaves. For outside curves and flat edges, a belt or disc sander is the better tool.

Why oscillating rather than just a drum in a drill press?

A drum in a drill press only spins, so every grain follows the same circular path. That wears a band around the middle of the sleeve, and once that band stops cutting it rubs — which means heat and burn marks, particularly on pale hardwoods. Oscillation moves the drum up and down so the whole sleeve is used, sleeves last several times longer, and the finish is noticeably cleaner. It also makes the tool far less likely to scorch your workpiece.

What spindle sizes do I actually need?

The useful range is 1/2″ through 2″. The 1″ drum handles most cabinet and furniture curves, 1/2″ and 3/4″ cover tight radii and scrollwork, and 1-1/2″ and 2″ suit gentle sweeping arcs. The key rule is that the drum must be smaller than the curve — a drum larger than the radius only touches the ends and distorts the shape. Machines that include five sizes cover almost everything you will cut.

Benchtop or portable spindle sander?

Benchtop for accuracy — the table holds the workpiece square, which is what keeps edges at 90 degrees rather than undercut. Choose it if you regularly sand curved parts small enough to carry to the machine. Portable for pieces that cannot be moved, like fitted worktops, arched openings and long handrails. Some portable models clamp down to work as a benchtop unit, which is a genuinely useful compromise if you only want to buy one.

Why is my spindle sander burning the wood?

Usually a worn sleeve, or pausing in one spot. A worn sleeve rubs instead of cutting, and rubbing is pure heat. Pausing concentrates that heat in one place and also carves a flat into your curve. Fit a fresh sleeve, keep the workpiece moving continuously, and use lighter pressure. Pale hardwoods like maple and cherry scorch fastest, so they are the ones to be careful with.

Spindle Sander Checklist

• Drum size matched to the tightest radius on the piece
• Fresh sleeve fitted at the right grit
• Correct table insert in place, minimal gap around the drum
• Table checked square to the spindle with an engineer’s square
• Dust extraction connected to the table port
• Eye protection and dust mask on
• Feeding against the direction of rotation
• Workpiece kept flat on the table throughout
• Workpiece moving continuously — never paused in contact
• Light pressure, letting the abrasive cut
• Sanding to a marked line rather than by eye
• Outside curves taken to a belt or disc sander instead

Final Thoughts

A spindle sander is a single-purpose machine, and that purpose comes up more often than you would expect once you own one. Any project with a curve — a shelf bracket, a chair back, a rounded tabletop, a cutout — becomes dramatically easier.

Buy on the range of spindle sizes and whether the table tilts, not on motor power. Keep fresh sleeves, keep the work moving, and let the oscillation do what it is there for.
