Best Belt Sanders: How to Choose (and 5 Models Worth Your Money)

Here is the thing nobody tells beginners: a belt sander is not really a sanding tool. It is a material removal tool. An orbital sander smooths a surface. A belt sander reshapes it. If you approach it like a big orbital sander, you will dig a trench in your workpiece within about four seconds.

Used properly though, it is the tool that turns a two-hour job into a ten-minute one. Stripping old deck stain, levelling a glued-up panel, cleaning rough-sawn lumber, shaping a curve, taking a door down to fit — all belt sander work.

This guide covers what to buy, why each spec matters, and the technique that keeps your surface flat instead of wavy.

The 4 Types of Belt Sander

People say “belt sander” like it is one tool. It is really four, and buying the wrong type is the most expensive mistake in this category.

1. Handheld belt sander (3″ x 21″ and similar)

The classic. You hold it and move it across the wood. Sizes are described by belt width x belt length — 3″ x 18″, 3″ x 21″, 4″ x 24″. This is what you want for decks, floors, doors, tabletops and general workshop use. Best all-rounder.

2. Benchtop belt and disc sander

Bolted to a bench, belt running vertically or horizontally with a sanding disc on the side. You bring the workpiece to the tool instead of the other way round. Brilliant for small parts, sharpening, squaring ends, and shaping curves. Useless for a deck.

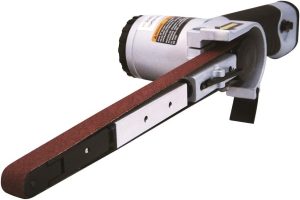

3. Belt grinder (1″ x 30″, 2″ x 72″)

A narrow, fast belt built for metal, knife making and tool sharpening. The 1″ x 30″ size is the hobby standard and doubles as a small wood shaper.

4. Bandfile / detail belt sander

A slim arm with a narrow belt, for getting into tight spots, weld cleanup and tube work. A specialist tool — buy it second, not first.

Specs That Actually Matter

Ignore most of the marketing. These are the five things that change how the tool performs in your hands.

• Variable speed — the most underrated feature. Fast speeds remove material quickly but burn softwood and clog on paint. Slow speeds give control on veneer, plastic and finishes. If you buy one feature, buy this.
• Belt size — 3″ x 21″ is the standard for a reason: manageable weight, wide choice of belts, good coverage. 3″ x 18″ is lighter and cheaper but you will make more passes. 4″ x 24″ covers ground fast but is heavy and harder to control.
• Motor amps — for corded tools, 7 to 9 amps is the useful range. Under 6 amps and the belt will stall under pressure, which is when gouges happen.
• Dust collection — belt sanders produce an enormous volume of dust, far more than an orbital. A bag helps; a vacuum port is much better.
• Platen flatness and tracking — the platen is the flat plate behind the belt. If it is not true, you cannot sand flat. Good tracking keeps the belt centred instead of drifting off and shredding.

Our Picks (With Real Specs)

These are chosen on published specifications and long-run owner ratings, not on hands-on testing. Where a model has a weakness, it is stated plainly.

Side-by-Side Comparison

💬 Affiliate disclosure: as an Amazon Associate, DetailSanderGuide may earn from qualifying purchases. This costs you nothing extra and never changes which tools we recommend.

Which Grit Should You Start With?

Grit choice matters more on a belt sander than any other sander, because the tool is so aggressive. Start too coarse and you will remove wood you wanted to keep.

A sensible sequence for a weathered deck is 60 grit to strip, then 80 to level, then move to a random orbital at 100–120. For a glued-up panel, start at 80. For anything with a finish already on it, start at 80 and keep the speed low so the finish does not melt and gum the belt.

Our grit progression planner maps this out for your specific wood and finish, and the sanding project calculator estimates how many belts you will get through.

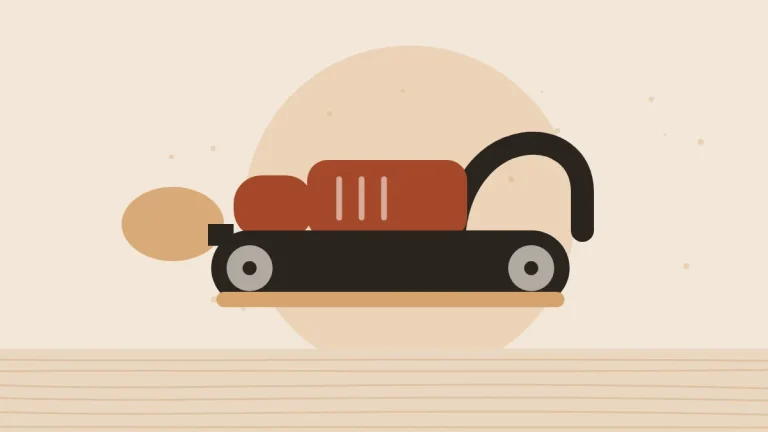

How to Use a Belt Sander Without Gouging Your Work

The technique is genuinely different from an orbital sander, and this is where most damage happens.

Step 1: Clamp the work down

A belt sander drives the workpiece away from you with real force. Clamp it, or fit bench stops. Never hold a board with one hand.

Step 2: Start the tool off the wood

Hold it above the surface, squeeze the trigger, let the belt reach full speed, then lower it onto the wood. Starting it while the belt touches the surface digs an instant divot.

Step 3: Land it flat and keep it moving

Lower the tool so the whole platen contacts at once, and start moving the moment it touches. A stationary belt sander eats a hole in seconds. Never pause mid-surface.

Step 4: Do not press down

Let the weight of the tool do the work. Pressing adds heat, clogs the belt, stalls the motor and creates dips. Your hands are there to guide direction, not to apply force.

Step 5: Overlap in long straight passes

Work with the grain, in long strokes running the full length of the board, overlapping each pass by about a third of the belt width. Keep the tool square to the surface.

Step 6: Lift off while still moving

At the end of the pass, lift the tool off the surface while it is still travelling forward. Then release the trigger and let the belt stop completely before setting it down.

🪵 The one rule to remember: a belt sander must always be moving while it touches wood. Every gouge you will ever make comes from breaking that rule.

Common Mistakes (and How to Fix Them)

1. Stopping mid-surface

Result: a deep oval hollow.
Fix: plan your pass before you start so you can travel the whole length without pausing. If you must stop, lift off first.

2. Tilting the tool

Result: gouged edges and a rounded-over surface.
Fix: keep the platen flat. Watch the tool, not the dust.

3. Pressing down hard

Result: burn marks, clogged belts, wavy surface.
Fix: hands guide, gravity sands. If it is not cutting, the belt is worn — change it rather than pressing harder.

4. Sanding across the grain

Result: deep cross-scratches that are very hard to remove.
Fix: always run with the grain. If you must go across to level something fast, follow up with the grain at a finer grit.

5. Starting with 36 grit “to save time”

Result: you save ten minutes and then spend an hour removing scratches.
Fix: start at 60–80 unless the surface is genuinely severe.

6. Ignoring belt tracking

Result: the belt drifts, rubs the housing and shreds.
Fix: run the tool in the air and adjust the tracking knob until the belt sits centred. Re-check after every belt change.

7. No dust collection

Result: a workshop coated in dust and a lot of it in your lungs.
Fix: use the bag at minimum, a vacuum if you can. See our dust safety checklist.

Pro Tips

• Sand a sacrificial board first. New belts are aggressive. One pass on scrap knocks the edge off and reduces the chance of gouging your real workpiece.
• Draw pencil lines across the surface. Sand until they vanish and you know coverage is even. Any surviving line is a low spot.
• Use a sanding frame if you have one. It limits how deep the tool can cut and makes flattening far more forgiving.
• Clean belts with a rubber cleaning stick. A clogged belt is often not worn out — it is loaded with resin. A cleaning stick can double belt life.
• Check the platen graphite pad. The cloth or graphite strip behind the belt wears out. When it does, friction and heat climb and finish quality drops.
• Sand end grain on the benchtop model. Trying to belt-sand end grain freehand usually rounds the corner. Bring the part to a benchtop sander instead.
• Let the motor cool on long jobs. Continuous heavy sanding cooks motors. Take breaks.

Real-World Examples

The deck that took a weekend instead of a week

A typical scenario: someone tries to strip a 300 square foot deck with an orbital sander and gives up after one afternoon. Switching to a belt sander at 60 grit cuts the job to a fraction of the time. The catch is that a belt sander on soft cedar or pine decking will gouge easily — so speed stays low, passes stay long, and the tool never stops moving.

The tabletop that came out wavy

A very common complaint on woodworking forums: a glued-up tabletop is belt sanded flat and ends up with visible waves in raking light. The cause is nearly always pressing down and working in short strokes. The fix is long, full-length passes with zero downward pressure — and finishing with a random orbital sander before finish goes on.

The door that got narrower than planned

Belt sanders remove wood far faster than expected on edges. People aiming to take off 1 mm end up removing 4 mm because the tool tipped onto the edge. For door edges, a hand planer or an orbital sander is usually the safer tool — see our hand planer guide.

Belt Care and Maintenance

Belts are consumables, but most people throw them away long before they are actually finished.

• Clean, do not bin. A rubber belt-cleaning stick removes packed resin and restores cut. Do this before assuming a belt is dead.
• Store belts flat or hanging. Belts left crushed in a drawer develop a kink that thumps against the work.
• Watch the arrow. Most belts have a directional arrow inside. Fitting one backwards can cause the joint to peel apart.
• Release tension for storage. Leaving a belt tensioned for months can distort the rollers on some tools.
• Empty the dust bag when it is half full. A full bag drops suction sharply, and packed sanding dust is a genuine fire risk — especially with finish residue in it.
• Blow out the motor vents. Sanding dust is fine enough to clog cooling vents and overheat the motor.

Frequently Asked Questions

Is a belt sander better than an orbital sander?

They do different jobs, so neither is “better”. A belt sander removes material fast — stripping paint, levelling boards, shaping. A random orbital sander smooths a surface without leaving swirl marks. The usual workflow is belt sander first to get it flat, orbital second to get it smooth. If you can only own one and your work is furniture and finishing, buy the orbital. If you strip decks and flatten rough lumber, buy the belt sander.

What size belt sander should I buy?

3″ x 21″ is the right answer for most people. It balances coverage, weight and belt availability. Choose 3″ x 18″ if you want something lighter and cheaper for smaller jobs. Choose 4″ x 24″ only if you regularly flatten large surfaces like decking or wide panels — it is significantly heavier and more tiring to control, and it is easy to do a lot of damage quickly.

Why does my belt sander leave marks and dips?

Almost always one of three causes. You stopped moving while the belt was touching the wood, which digs a hollow within seconds. You pressed down, which flexes the platen and creates a dip. Or you tilted the tool, which rounds edges and gouges. The cure is the same for all three: long continuous passes, zero downward pressure, platen flat on the surface.

Can I use a belt sander on metal?

Yes, with the right belt — but keep it separate from woodworking. Use aluminium oxide or zirconia belts rated for metal, and be aware that sparks plus accumulated wood dust in your sander and dust bag is a genuine fire risk. Empty the bag completely first, or better, use a dedicated belt grinder for metal. A 1″ x 30″ grinder is the usual hobby choice for knives and tool sharpening.

How long should a sanding belt last?

It depends enormously on the material and grit, but most people replace belts far too early. If the belt has stopped cutting, try a rubber cleaning stick first — resin loading looks exactly like a worn belt. Replace it when the abrasive is visibly polished smooth, when the joint starts lifting, or when you see scorching on the wood despite light pressure and a clean belt.

Do I need variable speed?

If you work with anything other than bare hardwood, yes. Full speed on softwood burns it, on paint it melts and gums the belt solid, and on veneer it can go straight through in a single pass. A slow setting gives you control on delicate work. It is the feature most owners say they would not give up.

Your Belt Sander Checklist

• Safety glasses, hearing protection and dust mask on
• Workpiece clamped, clamps clear of the sanding path
• Correct grit chosen — 60 to 80 for most jobs, not 36
• Belt fitted the right way round, tracking centred
• Dust bag empty or vacuum connected
• Speed set low for paint, softwood, veneer and finishes
• Tool started off the wood and at full speed before contact
• Platen landed flat, moving before it touches
• Long passes with the grain, overlapping by a third
• No downward pressure — the tool’s weight does the work
• Lifted off while still moving at the end of each pass
• Belt stopped completely before setting the tool down
• Finished with a random orbital sander before applying finish

Final Thoughts

A belt sander is the most powerful sander most people will ever own, and power is exactly what makes it unforgiving. The good news is that the technique is simple: keep it moving, keep it flat, and stop pressing.

If you are buying your first one, the 3″ x 21″ size with variable speed will handle almost anything you throw at it. Save the 4″ x 24″ for when you genuinely have large flat surfaces to cover, and pick up a benchtop model separately for small parts.
